Drive Flange of Concrete Mixer Truck

Rongcheng Ring Forgings  manufacture forged parts of concrete mixer truck as per your drawings.

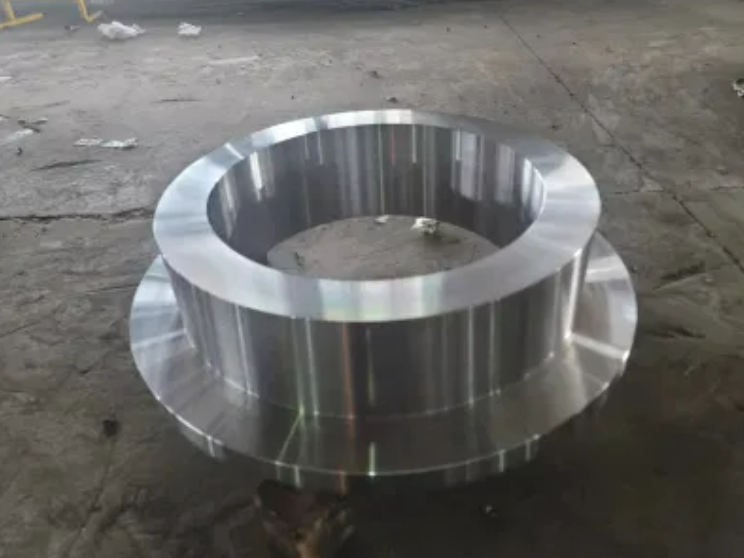

1.Track Roller Ring (Drum track):  welded on the back of the drum of the concrete mixer truck.

Material:  S355, St52-3 / A105 / 16Mn

Diameter:  400-4800 mm (Out diameter)

Thickness: 50- 400 mm

Equipped on the concrete mixer truck: 6-18CBM.

Advantage:  the excellent weldability and abrasion resistance.

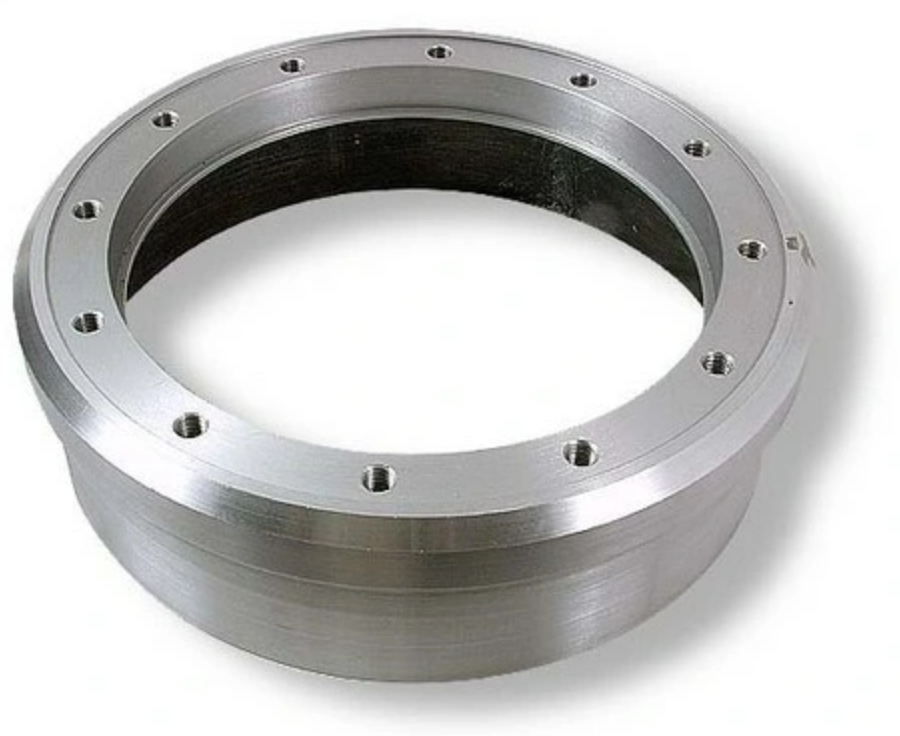

2. Drive Flange : It is in front of the drum,connect the drum and reducer of the concrete mixer truck.
Material:  A105,S355,A350LF2,A694
O.D       :  500mm to 1600mm
Holes    :  12,24

3.  drum roller (guide roller)
